FreightWaves Classics: Refrigeration helped railroads move fresh food nationwide (Part 2)

If you missed Part 1 of this article, here is a link.

Improving refrigerator railcars

Early wooden refrigerator railcars required insulation to help protect their contents from extremes in temperature. “Hairfelt” was compressed cattle hair, placed into the floor and walls of a railcar. It was inexpensive (a byproduct of the slaughtering process), yet quite flawed. Hairfelt would last three to four years, but it would decay, which rotted the car’s wooden partitions and often tainted the cargo because of its odor. The higher cost of other materials (“Linofelt,” which was woven from flax fibers) or cork meant that they were not widely used. After World War II,  synthetic materials such as fiberglass and polystyrene foam came into use, providing more cost-effective and practical solutions.

Dry ice. (Photo: livescience.com)
Dry ice. (Photo: livescience.com)

The use of dry ice

The Santa Fe Railway was a leader among the railroads in seeking to improve refrigerator railcars. It experimented with dry ice as a cooling agent for its refrigerator railcars in 1931. Dry ice was readily available by then and appeared to be an ideal replacement for conventional ice. Dry ice melts at −109°F, compared to 32°F for conventional ice. Dry ice is also twice as effective thermodynamically as conventional ice. In addition, the overall weight of a railcar was reduced because the need for brine and water (used with conventional ice) was eliminated. Dry ice was more expensive than conventional ice, but it was the logistical issues involved in loading numerous railcars efficiently that kept dry ice from replacing conventional ice. Perhaps more importantly, Santa Fe employees learned that the most negative aspect of dry ice was that it affected the color and flavor of certain foods adversely if it was placed too closely to them.

A Soo Line refrigerator railcar. (Photo: Whippany Railway Museum)
A Soo Line refrigerator railcar. (Photo: Whippany Railway Museum)

Use in World War II

From 1941-48 the United States Office of Defense Transportation implemented mandatory pooling of produce refrigerator railcars. During the war, the railcars spent 60% of their time traveling loaded, 30% traveling empty, and 10% idle. The railcars averaged 14 loads per year; five required bunker icing, one required heating, and eight used ventilation or top icing.

With that information and nearly 50 years of experience with different types of refrigerator railcars, the United Fresh Fruit and Vegetable Association (UFF&VA) listed the features that would improve refrigerator cars in 1948:

  • Steel cars (rather than wood) for better insulation protection and greater rigidity (which resulted in reduced leakage around doors)
  • A minimum of 4 inches of insulation thickness with all insulation protected from moisture
  • Cushioned trucks and draft gear to minimize jarring and the bruising of produce
  • Standardized interior dimensions to allow improved loading methods with standardized containers
  • Adjustable ice bunker bulkheads to allow greater floor space for shippers using only top icing
  • Vertically adjustable grates within the ice bunkers to allow half-stage icing to reduce icing charges when appropriate
  • Forced air circulation within the car
  • Additional lining to allow side wall flues to circulate air around the cargo (which prevented the cargo from coming into contact with exterior car walls)
  • Perforated floor racks that provided similar protection and air circulation under the cargo
  • Provisions for pre-cooling the cars with a portable unit at the loading platforms
Refrigerator railcars of various railroads in a railyard. (Photo: Whippany Railway Museum)
Refrigerator railcars of various railroads in a railyard. (Photo: Whippany Railway Museum)

Mechanical refrigeration

During the latter half of the 20th century, mechanical refrigeration started to replace ice-based systems. Among other changes brought by mechanical refrigeration units, the number of workers needed to ice and re-ice railcars dropped dramatically.

PFE experimented with a sliding plug door in April 1947. The sliding plug door had a larger six-foot opening that facilitated easier railcar loading and unloading. In addition, the doors fit tighter into its opening and was better insulated, which helped to maintain a more even temperature inside those railcars that were equipped with them. Because of its success, PFE’s next series of reefers, which were designed in 1949 and built in 1951, were equipped with sliding plug doors. The Santa Fe began to use plug doors on its refrigerator railcars that were built in 1951 as well. By the mid-1960s most refrigerator railcars used sliding plug doors, and by the mid-1970s, the few remaining ice bunker cars were relegated to “top-ice” service, where crushed ice was applied atop the commodity.

A cyrogenic refrigerator railcar. (Photo: refrigeratedandfrozenfood.com)
A cyrogenic refrigerator railcar. (Photo: refrigeratedandfrozenfood.com)

Cryogenic refrigeration

At the Santa Fe Railway’s Topeka, Kansas repair shops, five experimental refrigerator railcars that used liquid nitrogen to cool the cars were built in 1965. “A mist induced by liquified nitrogen was released throughout the car if the temperature rose above a predetermined level.” Each of the railcars carried 3,000 pounds of refrigerant and could maintain a temperature of -20°F.

Then, during the 1990s, several railcar manufacturers experimented with liquid carbon dioxide (CO2) as the cooling agent for refrigerator railcars. Carbon dioxide was tried because fuel costs were rising at the railroads (and refrigerated railcars weighed more than a normal railcar and therefore used more fuel) on a per car basis. In addition, the railcar manufacturers sought to eliminate the standard mechanical refrigeration systems that required periodic maintenance. The CO2 systems at that time were capable of keeping cargo frozen solid as long as 14 to 16 days.

Although several hundred of these “cryogenic” refrigerator railcars were placed in service to transport frozen foodstuffs, they failed to gain wide acceptance. In part, this was due to the rising cost of liquid CO2. However, cryogenic refrigeration is a proven technology and environmentally friendly. The continuing rise in fuel costs and the increased availability of carbon dioxide (due to “Kyoto Protocol-induced capturing techniques”) may lead to greater use of cryogenic railcars going forward.

Union Pacific marketing material for its refrigerated railcars. (Image: Union Pacific Railroad)
Union Pacific marketing material for its refrigerated railcars. (Image: Union Pacific Railroad)

Experimentation with railcar materials

In addition to experimentation with various coolants, several experimental railcars were manufactured after World War II production restrictions were eased in 1946.

The Illinois Central Railroad built a refrigerated railcar in its McComb, Mississippi shops. Its aluminum superstructure reduced weight; steel was also used where required for strength. The railcar was built to the standard dimensions of the time, but also had “cushioned draft gear, easy-riding trucks, a minimum of four inches of insulation, adjustable ice bunker bulkheads and half-stage icing racks with forced air circulation through side wall flues and floor racks recommended by UFF&VA.”

The Consolidated Steel Corporation built a stainless steel refrigerator railcar for Santa Fe. It featured “convertible ice bunkers, side ventilation ducts and axle-driven circulation fans.” Engineers thought that stainless steel would better resist the corrosive deterioration resulting from salting ice. The one-of-a-kind unit spent most of its life in express service. The costs associated with building the railcar were cited as the reason no additional units were built.

In its Los Angeles shops, Pacific Fruit Express experimented with aluminum car bodies in 1946. Two steel-sided ventilator refrigerator railcars were rebuilt to test the durability of lightweight alloys compared to steel. The rebuilt railcars weighed almost 10,000 pounds less than a similar all-steel railcar and offered better corrosion resistance. The engineers hoped that those two factors would offset the higher initial cost of the aluminum railcars. Alcoa provided the body for one railcar, and Reynolds Aluminum Company provided the other. The railcars were also equipped with state-of-the-art fiberglass insulation and axle-driven fans for internal air circulation. They were used throughout the Southern Pacific and Union Pacific systems, and were also displayed to promote PFE’s post-World War II modernization. While both units remained in service over 15 years, no additional aluminum reefers were constructed.

A Santa Fe Railway refrigerator railcar. (Photo: californiarevealed.org)
A Santa Fe Railway refrigerator railcar. (Photo: californiarevealed.org)

Refrigerated hopper railcars

The Northern Pacific Railroad ordered several modified covered hopper cars from American Car and Foundry (ACF) in 1969. The 55-foot-long railcars were to be used to transport perishable food in bulk. Each railcar was “blanketed with a layer of insulation, equipped with roof hatches for loading and had center-flow openings along the bottom for fast discharge.” ACF installed a mechanical refrigeration unit at each end of the railcar, and sheet metal ducting forced cool air into the cargo compartments.

The capacity of these new railcars was 91 tons, which was more than double of the largest conventional refrigerator railcar at that time. Additionally, they cost less to load and unload because no secondary packaging was required. Shipments of apples, carrots, onions and potatoes were transported by these railcars with moderate success. That led the Santa Fe Railway to lease 100 of these hoppers from ACF. The railroad followed up by buying 100 units in April 1972. The railcars were promoted as “Conditionaire” cars.

However, the railcars had an irregular, orange-colored outer surface that got dirty easily and was difficult to clean. Santa Fe eventually modified the railcars to non-refrigerated applications.

A Railway Express Agency reefer in Taylor Yard, Los Angeles in February 1958.
(Photo: SLO Railroad Museum)
A Railway Express Agency reefer in Taylor Yard, Los Angeles in February 1958.
(Photo: SLO Railroad Museum)

Express service

Standard refrigerated transport via rail was used most often for goods with less than 14 days of refrigerated “shelf life.” Examples of those products included avocados, cut flowers, green leafy vegetables, lettuce, mangoes, meat products, mushrooms, peaches and nectarines, pineapples and papayas, sweet cherries and tomatoes.

“Express” refrigerator railcars came into use to transport special perishables with shelf lives of seven days or less. Commodities in this category included fish, green onions, human blood, milk, strawberries and a number of pharmaceutical products.

The first express-service refrigerated railcars entered service in the last decade of the 19th century (shortly after the railroads established the first express train routes). However, express refrigerated railcars were not commonly used until the early 20th century. Most of the refrigerated railcars that were designed for express service were larger than the standard refrigerated units, and were usually built more like baggage cars than freight railcars. The express railcars had to be equipped with speed-rated trucks and brakes, and if they were placed ahead of a passenger car, they had to also have an air line for pneumatic braking, as well as a communication signal air line, and a steam line for train heating. In addition, express units were usually painted to match the passenger railcars of the various railroads that utilized them.

The first express refrigerated railcar manufactured for that purpose was built by the Erie Railroad in August 1886. Forty years later, there were over 2,200 express refrigerator railcars; by 1930 that number had increased to over 3,200. By 1948, the Railway Express Agency (REA) had approximately 1,800 of these railcars. (To read more about REA, go to this FreightWaves Classics article.) Many were World War II “troop sleeping cars” that were modified for express refrigerated transport. However, by 1965, a decline in refrigerated traffic meant that many of the express refrigerator railcars were leased to the railroads and used as bulk mail carriers.

A refrigerated truck trailer on a railroad flatcar. (Photo: quora.com)
A refrigerated truck trailer on a railroad flatcar. (Photo: quora.com)

Intermodal

The Interstate Commerce Commission (ICC) regulated both the railroad and trucking industries (as well as other industries). As outlined in Part 1, virtually all of the perishable goods shipped in the United States were transported by railroads. However, one of the inequities in the ICC’s regulatory policies was that railroads were subject to government regulation of their shipping rates, while trucking companies could set their own rates for hauling agricultural products. This obviously gave the trucking industry a competitive advantage over the railroads. However, the ICC exempted rail transportation of fresh fruits and vegetables from all economic regulation in March 1979 (not long before deregulation of both industries).

The railroads began to aggressively pursue shipping of refrigerated trailer-on-flatcar (TOFC) by train. That was followed by a number of carriers (including the PFE and the Santa Fe) buying their own refrigerated truck trailers to compete with the interstate trucking industry.

In 1970, Tropicana shipped orange juice in bulk using insulated boxcars from Bradenton, Florida, to Kearny, New Jersey. On June 7, 1971, the “Great White Juice Train,” which was the first unit train in the food industry, left Bradenton. It consisted of 150 91-ton insulated boxcars fabricated by Fruit Growers Express. By late that year, the company was operating two 60-car unit trains weekly, each carrying around 1 million gallons of juice on the 1,250-mile trip. Shortly thereafter, 100 more railcars were added. Small mechanical refrigeration units were installed in these railcars to keep temperatures constant. These “juice trains” saved Tropicana $40 million in fuel costs during their first 10 years in operation.

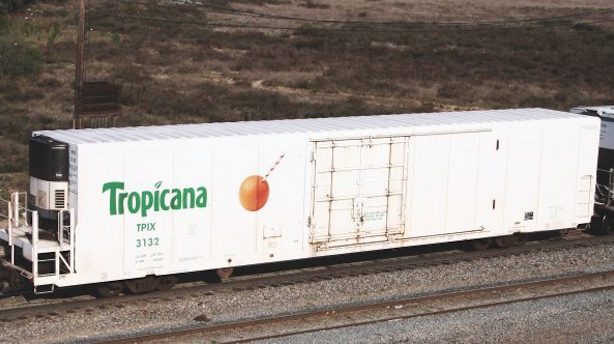

One of Tropicana's fleet of refrigerator railcars. (Photo: gorail.org)
One of Tropicana’s fleet of refrigerator railcars. (Photo: gorail.org)

Use of refrigerator railcars declines

While refrigerator railcars made shipping meat, fruit, vegetables and other perishable items practical, their use has diminished over the decades. In 1950, the number of refrigerator railcars in the U.S. decreased to 127,200. The last ice bunker refrigerator railcars were built in 1957; the last ice-cooled reefers were taken out of service in 1970.

The industry’s first mechanical refrigerator railcars (which used diesel-powered refrigeration units) went into service in 1958. By 1980 (when both the railroad and the trucking industries were deregulated), the number of refrigerator railcars had decreased again, down to about 80,000 units. Twenty years later, the number of refrigerator railcars had dropped by 90% – down to only 8,000 units. Although that number climbed to approximately 25,000 refrigerator cars by 2005, it was still far below peak levels.

Although refrigerator railcar manufacturers and different railroads (particularly the Santa Fe) improved the railcars over the decades, refrigerated trucks (and, to a lesser extent, aircraft) have continued to erode the volumes hauled by rail.

Nonetheless, the next time you eat fresh fruit in the middle of the winter, keep in mind how that came about, and how the transportation industry has made your life a little better.

A cornucopia of fresh fruit. (Photo: cookinglight.com)
A cornucopia of fresh fruit. (Photo: cookinglight.com)
