NewsRail

Commentary: How do railroads manage costs during pandemic?

North American rail managers are good at this, but 2020 might be their ultimate challenge.

The views expressed here are solely those of the author and do not necessarily represent the views of FreightWaves or its affiliates.

U.S. rail and trucking freight traffic is falling.

(Photo credit: Jim Allen/FreightWaves)

Let’s say you are in charge at a freight railroad. What do you do in such hard times with so many fixed costs? You can ratchet down variable costs. That’s easy. The tougher part is twisting a large part of those fixed costs into segments of variable costs.

How do you do that? Let’s start by defining what these railroad costs are.

A freight railroad’s cost structure is a blend of common costs – sometimes called joint costs. In addition, there are some geographic sectors of solely allocated costs. Then there are short-term variable costs. Finally, railroads have a large segment of what economists call completely fixed costs.

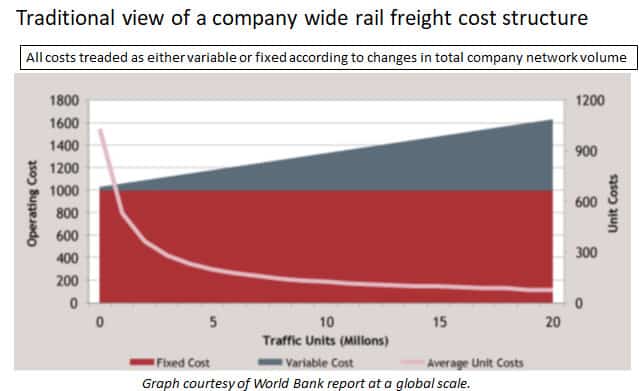

 This graph shows how variable and fixed costs generally are scaled compared to average units costs.

Fixed costs

Fixed costs can be either “fixed into the ground” costs or mobile asset costs.

Bridges, tunnels, track abutments and both tangent and curved and turnout track are in this fixed cost “bucket.”  Signaling hardware and communications networks are also fixed costs. Both locomotives and freight car rolling stock have elements of fixed expenses, such as long-term leases or mortgage payments.

Sometimes, fixed costs also mean that a class of assets is not liquid. These assets might be old, but they continue to have some type of valuation even if stored.

Variable costs

Shifting to the variable costs of running freight trains, there is an assumed near-immediate cost savings often measured as a cash expense that can be avoided.

The operations and transportation divisions of the railroad are the areas where managers search for cost avoidance.

This graph assumes that changes in variability are linear. Practical experience suggests that is not always true. Costs are not always linear.

 To a railroad company the first obvious variable costs include:

  •  Train fuel
  •  Train crew expenses
  •  Train set daily “per diem” payments due to someone else

To manage these expenses downward requires cutting services – starting with “train starts” per day being dispatched.

 It may also mean combining some trains into longer ones since this can incrementally save on both fuel and crew costs as well as locomotive per diem.

Pushing the cost saving efforts further might mean slowing train running speeds by 10% or more to conserve fuel.

(Photo credit: iStock)

It also might mean storing excess locomotives and freight cars (the 40% or so of the national car fleet that railroad companies on average own).

Every railcar that a railroad owns (or leases) as well as every locomotive has a maintenance cost. The maintenance costs of those cars and locomotives are typically mileage-run formulas. Therefore, the mechanical department will see a lower variable expense if these units are either parked or stored.

The examples above are the traditional definitions of rail freight variable cost savings.

But managers can also save on some parts of fixed costs.

Pushing further, engineering science allows managers today to reduce long term former fixed track costs.

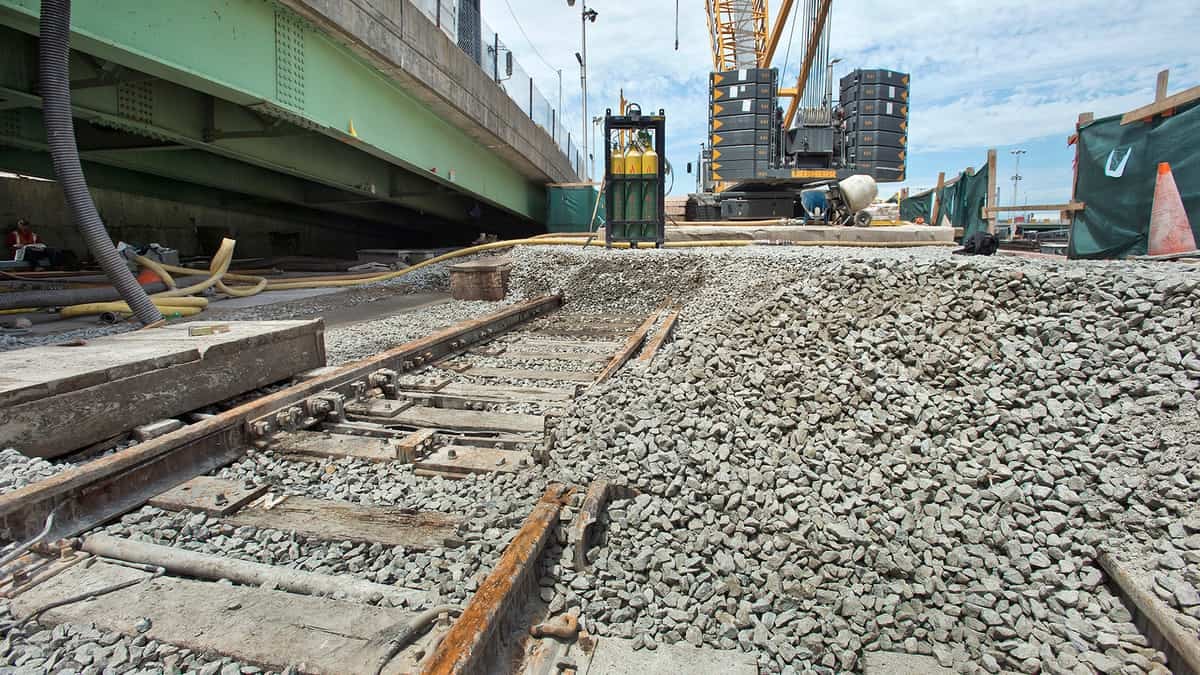

Here is how. Maintenance costs for long-term track degradation are a direct function of each axle set or wheel contact made with the steel rails and the supporting ties, tie plates, and ballast that complete “the infrastructure.”

However, the degradation track structure  repairs are spread out over time.

The accumulation of those degradation impacts typically are calculated on a ton-mile passing basis. The required maintenance expense saved would include materials, track repair machines, plus the required track workforce expenses.

(Photo credit: MTO)

Such “deferral” isn’t always recommended.  But maintenance deferrals do occur.

What’s that look like? A managed deferral maintenance on items that are long-term costs would see a short-term reduction in system-wide tie replacement.  Or a longer time spacing between track “surfacing” work. For example, instead of every third year, a heavy traffic density line might see a timing adjustment to every fourth or fifth year.

Signs a railroad may have gone too far

Why defer maintenance? In part it is done to conserve cash and turn the portion of capital work that is expensed in the Income Statement. That can influence both short-term free cash flow and operating ratio calculations.

Here’s a simple scorecard.

Excessive deferral would eventually result in “slow-ordered” tracks. Train speeds would be reduced as track functional speed is reduced in order to comply with Federal Railroad Administration track safety engineering regulations.

A lowered track speed need not be viewed as specifically dangerous. Instead, it might limit top freight train speeds previously set at 40 mph as an example to 25 mph.

Another possible sign of physical track distress might end up being internal steel rail defects increasing per mile (these require ultrasonic testing to find).

These are not predictions of what will happen. It’s just a business discussion about possible corporate adjustments to extreme economic conditions.

Other classical fixed costs can be reduced.

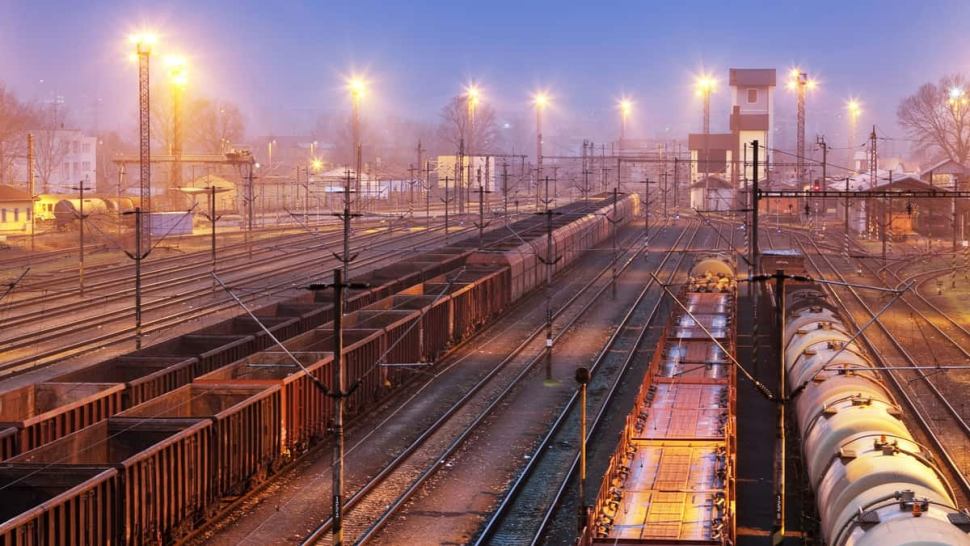

This includes the number of rail yards used. Managers can effectively shave these yard fixed costs by changing train operations and freight car switching procedures.

(Photo credit: Jim Allen/FreightWaves)

Conclusion

In conclusion, variable costs do vary almost directly with a railroad’s service units.

The direct service elements to monitor are train starts, train miles, ton-miles of work performed, fuel used and crew costs.

Modern managers turn formerly considered fixed costs into managed variable costs.

They will attack the top line also. If possible, managers will look for ways to increase the rates charged for some of the still moving traffic.

They will likely continue to use differential pricing to keep using top line revenues as strong as possible. Differential pricing is quite common in many businesses.  Products manufactured by a premium brand company are often discounted when marketed under a local grocery store or other brand name. Car rentals and airline ticketing take on differential pricing aspects, as do movie theater tickets for seniors. Even utilities’ electricity rates have elements of different pricing levels and times of day factoring.

While we might expect some changes in the usage, the Class 1 railroads so far haven’t signaled abandonment of that pricing method. Not as or mid-month April 2020.

If they are protecting their overall pricing approach, this explains in part why the railroads so far have not switched to using spot market pricing to protect traffic erosion by trucking in some key lanes.

How do you see railroad costs evolving and being used during this 2020 coronavirus crisis? Please, alternate hypotheses are welcomed. That’s how we learn together.

Recommended references:

  • Amos and Bullock, The financial performance of non-urban passenger rail services (World Bank 2007).  In an “open access” railway structure as in Europe, the freight ‘price’ is often a politically determined budgetary allocation of the infrastructure company’s costs between freight and passenger sectors. That is NOT the North American rail business model.
  • Louis S. Thompson, Railway Access Charges in the EU: Current Status and Development since 2004.
  • John Gray and others; AAR’s paper about Differential Pricing. Go to the Association of American Railroads internet site.
  • Wesley W. Wilson & Frank A. Wolak – “Freight Rail Costing and Regulation: The Uniform Rail Costing System”; Springer Science+Business Media; 2016.
